AEROX SOLUTION

AEROX Server

    A scalable biometric server platform for secure verification, identification, and database management.

Simplify Deployment. Scale with Confidence.


    AEROX Server integrates with existing biometric data, simplifies deployment, and scales efficiently to support reliable service operations.

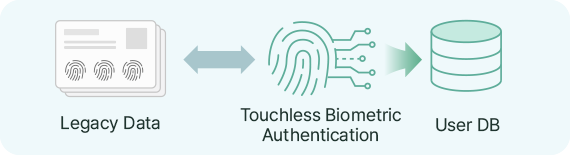

  • Legacy Data Integration
    Integrates with existing fingerprint data, enabling continued use of legacy biometric databases.
    Legacy Data Integration
  • Reliable Service Operations
    Provides real-time system monitoring and operational management for stable, continuous service.
    Stable Service Operations Management
  • Docker-Based Deployment
    Simplifies installation and deployment through containerized Docker environments.
    Docker Deployment
  • Automatic Scaling
    Scales search performance and enrollment capacity dynamically as demand grows.
    Automatic Scale-Up

AEROX Matcher API

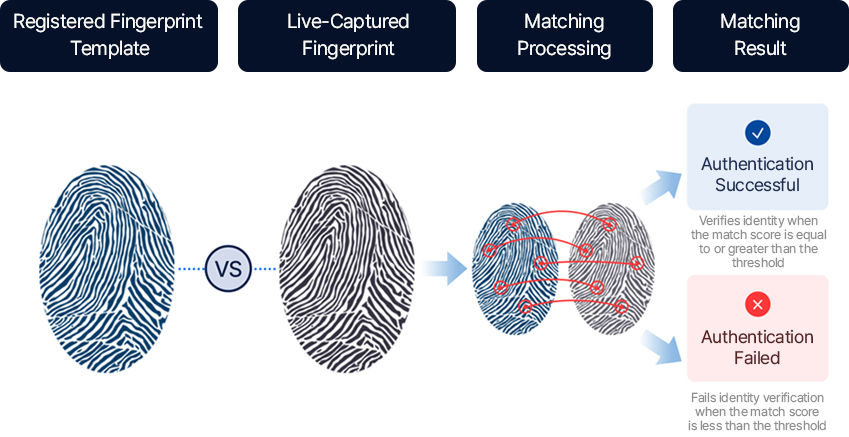

1:1 Matching

Compares input fingerprint or palmprint data with enrolled biometric templates, calculates similarity scores, and returns a match result based on configurable thresholds.

1:1 Matching

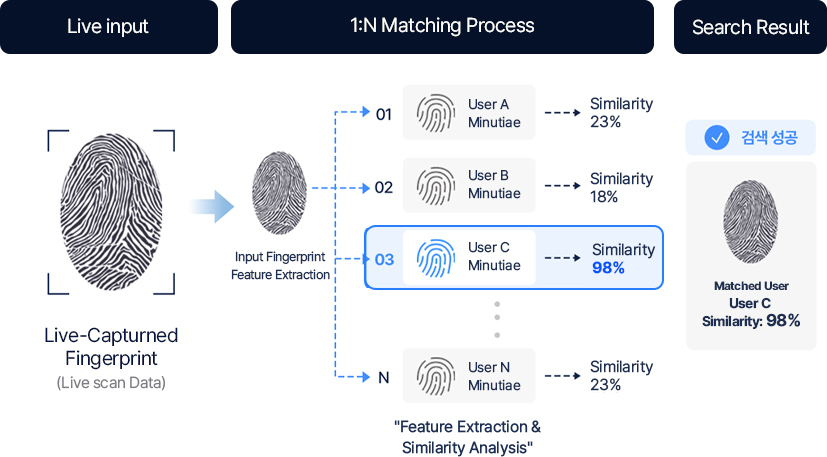

1:N Identification

Searches registered fingerprint templates to identify the most likely matching candidates.
Search conditions and parameters, including filters, minimum score, search level, and number of candidates, can be customized.

1:N Search

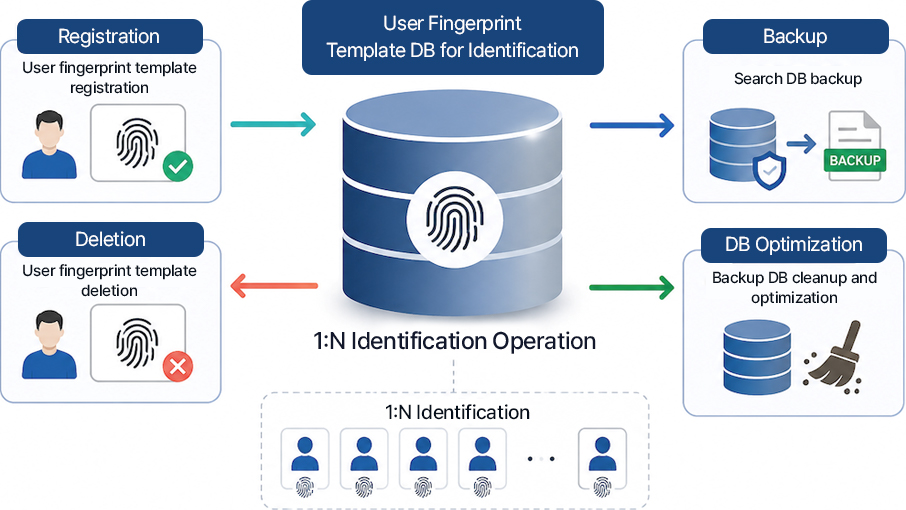

Biometric Database Management

Supports registration, deletion, backup, and optimization of fingerprint templates for efficient 1:N identification.

Search DB Management

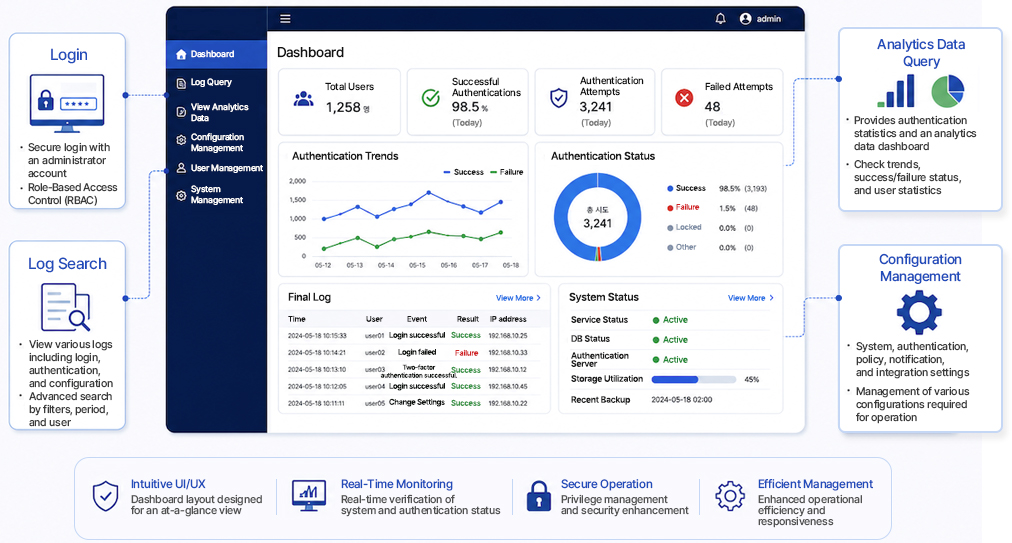

Operations Web Console

Provides web-based system management, including login, log search, analytics, and configuration.

Dashboard

Architecture & Integration

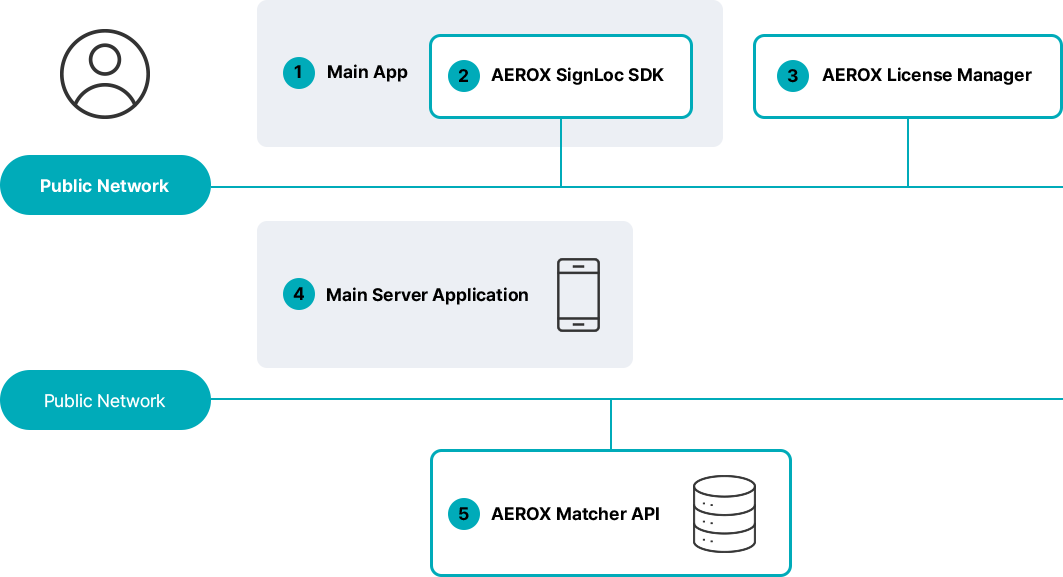

Basic Architecture of AEROX Matcher API

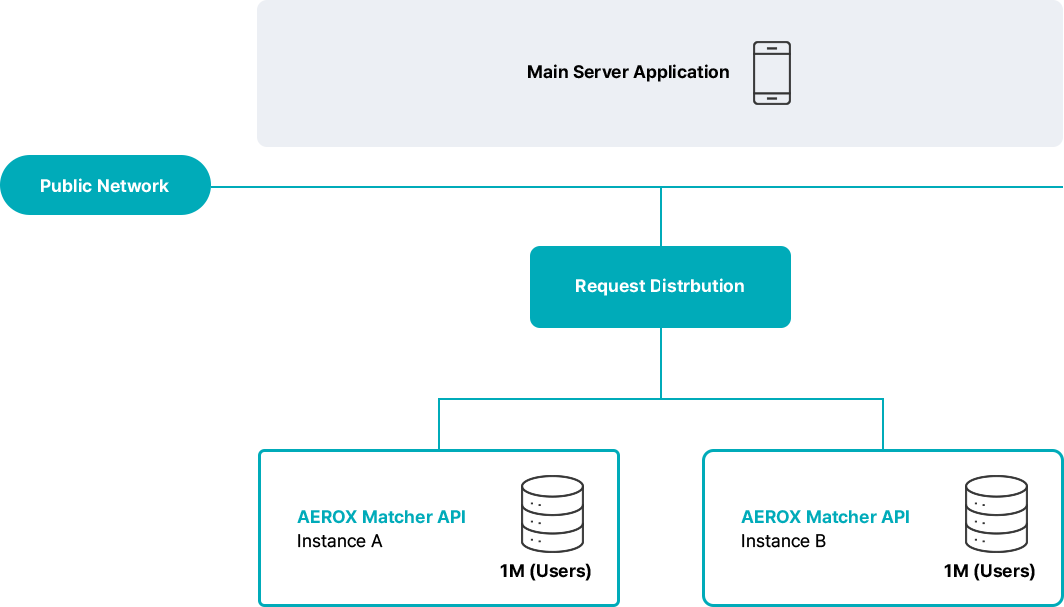

Load Balancing & Scalability

Incoming requests are distributed across multiple AEROX Matcher API instances with synchronized search data.
This architecture supports scalable, efficient service operation. Database synchronization between instances is managed by the host system.

Load Balancing Architecture of AEROX Matcher API

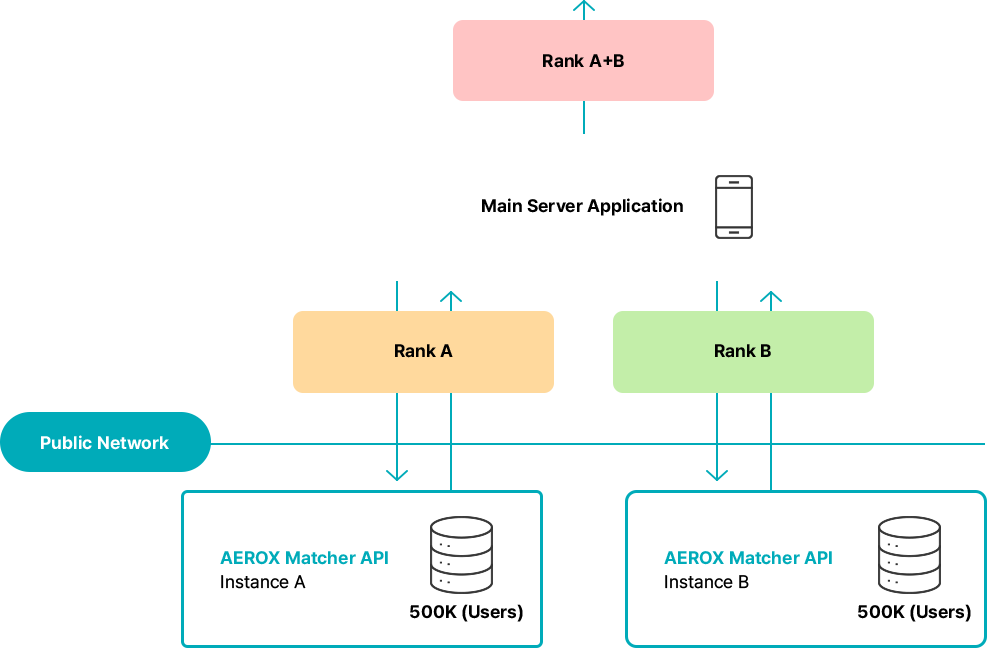

Parallel Query & Distributed Search

Queries run simultaneously across multiple AEROX Matcher API instances with partitioned search data, then return a single aggregated result.
Designed for large-scale, real-time identification.
Data distribution and result aggregation are managed by the host system.

Parallel Query Architecture of AEROX Matcher API

Recommended System Specifications

Base System Requirements

Component Requirement
Operating System Ubuntu 20.04 LTS (Including Linux OS Support)
CPU Architecture X86_64 (AVX2 optimized)
GLIBC 2.31 or later
Docker Engine 20.10.24 or later

Recommended Hardware for 1:1 Matching

Component Recommended Specification
CPU Ubuntu 20.04 LTS (Including Linux OS Support)
Memory 16 GB or more

Recommended Hardware for 1:N Matching

Component 1:N Small 1:N Medium 1:N Large
CPU 4 cores (vCPU 8) or higher 8 cores (vCPU 16) or higher 32 cores (vCPU 64) or higher
Memory 16 GB 32 GB 64+ GB
Disk Type : NVMe SSD Type : NVMe SSD Type : NVMe SSD
FS Type : ex4 FS Type : ex4 FS Type : XFS
Storage : 100 GB Storage : 500 GB Storage : 1 TB+
